环境光

ZALS053C
ZALS053C 红外环境光感测器是一款高灵敏度的光敏传感器,插件式外型封装, 体积小巧,高可靠性,既节能又环保,应用领域广, 可取代传统 CDS 使用,也可以用于产品对射及反射使用。
The ZALS053C infrared ALS is a high sensitivity of the photosensitive sensor, Plug-in-type package, small size, high reliability, energy saving and environmental protection, wide application field, it can replace the traditional CDS use, can also be used for product use on the radio and reflection.
特性 Feature
--感应速度快、感光度强
Fast response time 、High photo sensitivity
--无铅材料、RoHS 认证
Pb.Free 、RoHS compliant version
--接收峰长 540nm
Receiving a peak wavelength of 540nm
应用 Application
--红外应用系统、光电开关、复印机、扫描仪、洗衣机
Infrared applied system 、Optoelectronic switch 、Copiers 、Scanners 、Amusement machines
产品尺寸 Package Dimension
备注 Notes:
--所有尺寸为毫米标识
All dimensions are in millimeters
--未标识尺寸正负公差为 0.3mm
Tolerances unless dimensions ±0.3mm

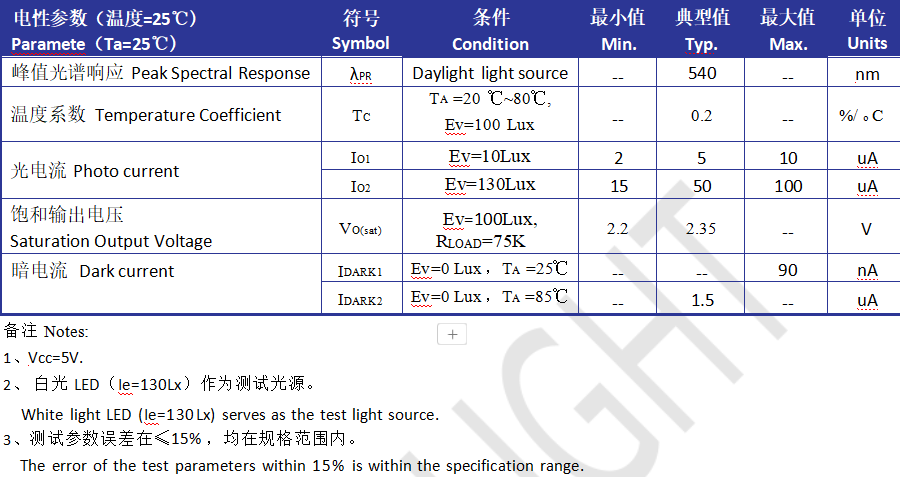

光电特性 Electro-Optical Characteristics

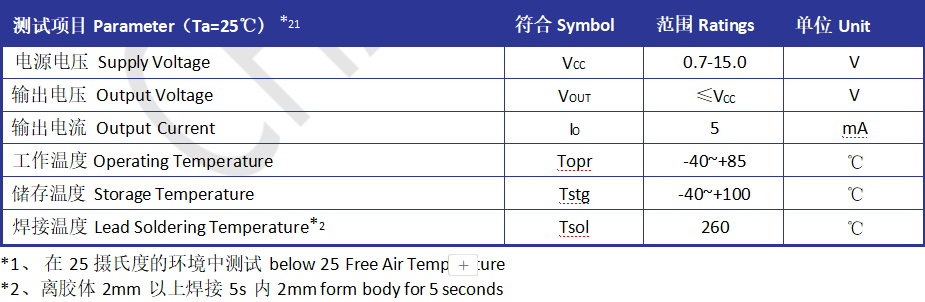

最大额定值 Absolute Maximum Ratings
