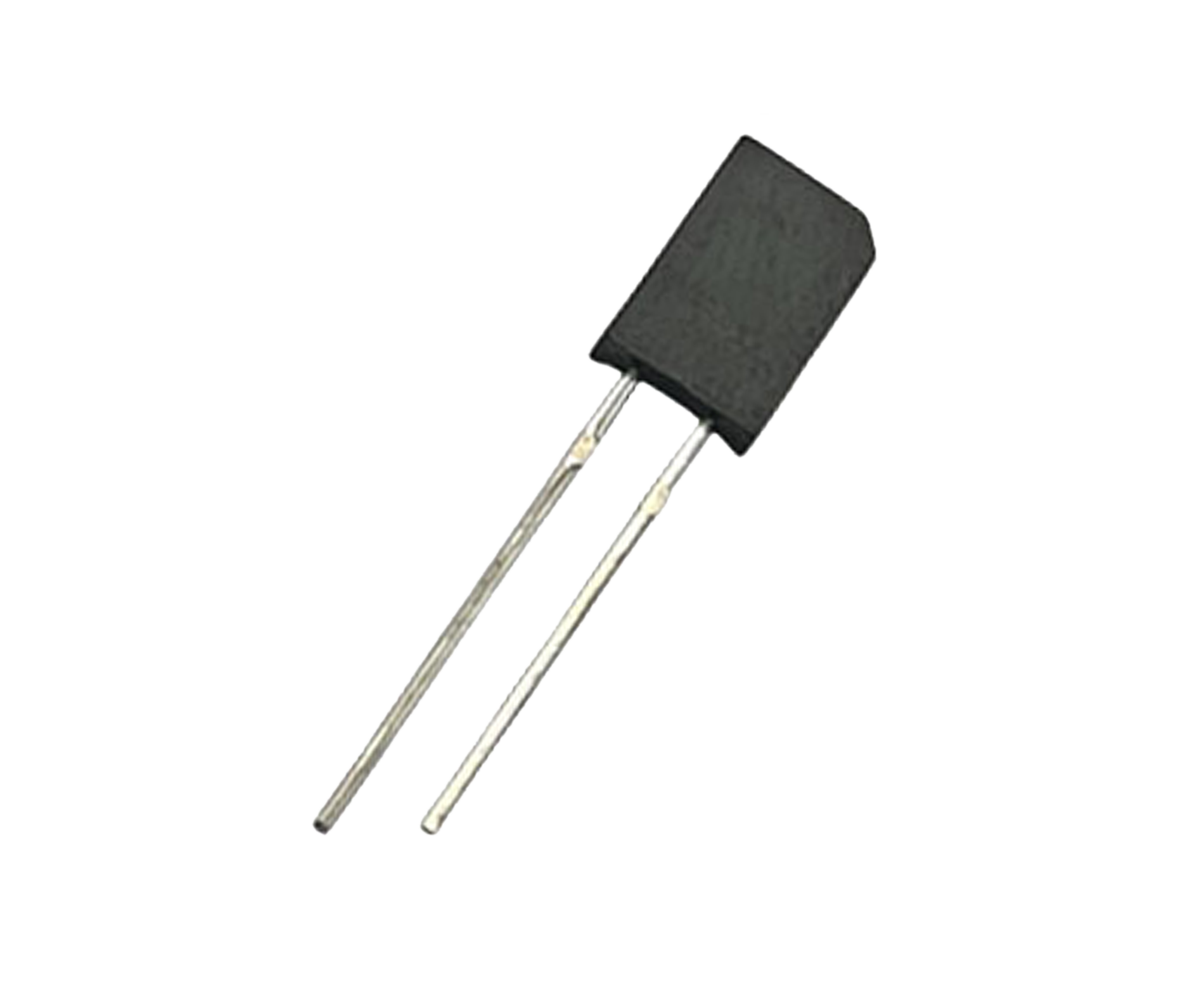

ZPD818
ZPD818 为圆柱形的侧视胶体，封装中的高速高灵敏度 PIN 光电二极管。 该装置与红外发射二极管相匹配。
ZPD818 is a high speed and sensitive PIN photodiode in a cylindrical side view plastic package. The epoxy package itself is an IR filter , spectrally
matched to IR emitter.
Features
特性 Feature
--感应速度快、感光度强
Fast response time 、High photo sensitivity
--无铅材料、RoHS 认证
Pb.Free 、RoHS compliant version
Other Applications
应用 Application
--红外应用系统、光电开关、复印机、扫描仪、烟雾报警器
Infrared applied system 、Optoelectronic switch 、Copiers 、Scanners 、smoke alarm
