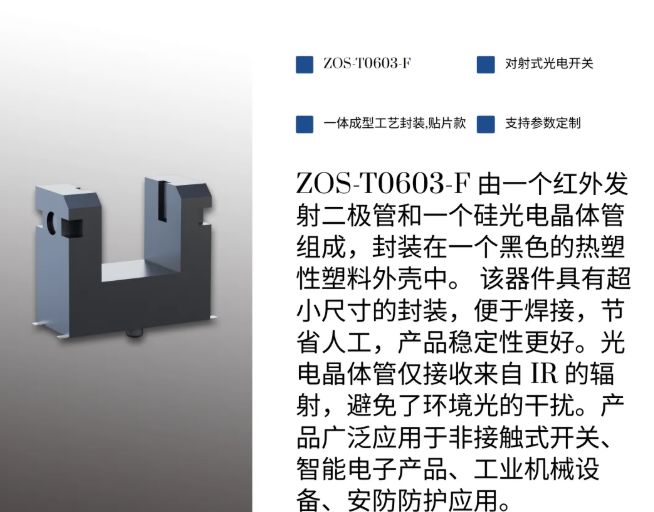

ZOS-T0603-F由红外发射二极管和NPN 硅光晶体管组成，它们并排封装在黑 色热塑性外壳中的汇聚光轴上。光电晶体管只接收来自 IR 的辐射。这是正常 情况。但当物体在中间时，光电晶体管不能接收辐射。有关更多组件信息，

n请参阅 IR 和 PT。

The ZOS-T0603-F consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing.The phototrasistor receives radiation from the IR only .This is the normal situation. But when an object is in between , phototransistor could not receives the radiation.For additional component information , please refer to IR andPT.

特性 Feature

--可靠性高、辐射强度高、低电压驱动

 High reliability、High radiant intensity、Low forward voltage、

 --感应速度快、感光度强

Fast response time、High photo sensitivity

 --截止感应波长 940nm Cut-off visible wavelength λp=940nm

--无铅材料、RoHS认证

Pb.Free、RoHS compliant version

应用 Application

--打印机、非接触开关

Printer、Non-contact Switching

--智能电子产品

Intelligent Electronic Products

--工业机械设备

Industrial Intelligent Equipment

--安防防护应用

Safety Application Products

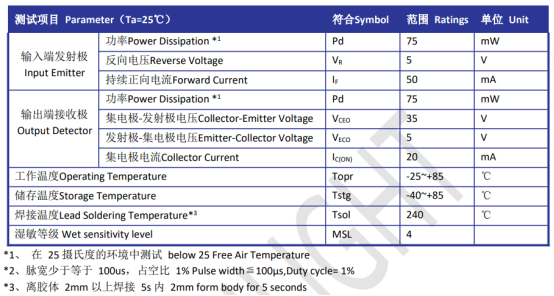

最大额定值 Absolute Maximum Ratings

产品尺寸 Package Dimension
